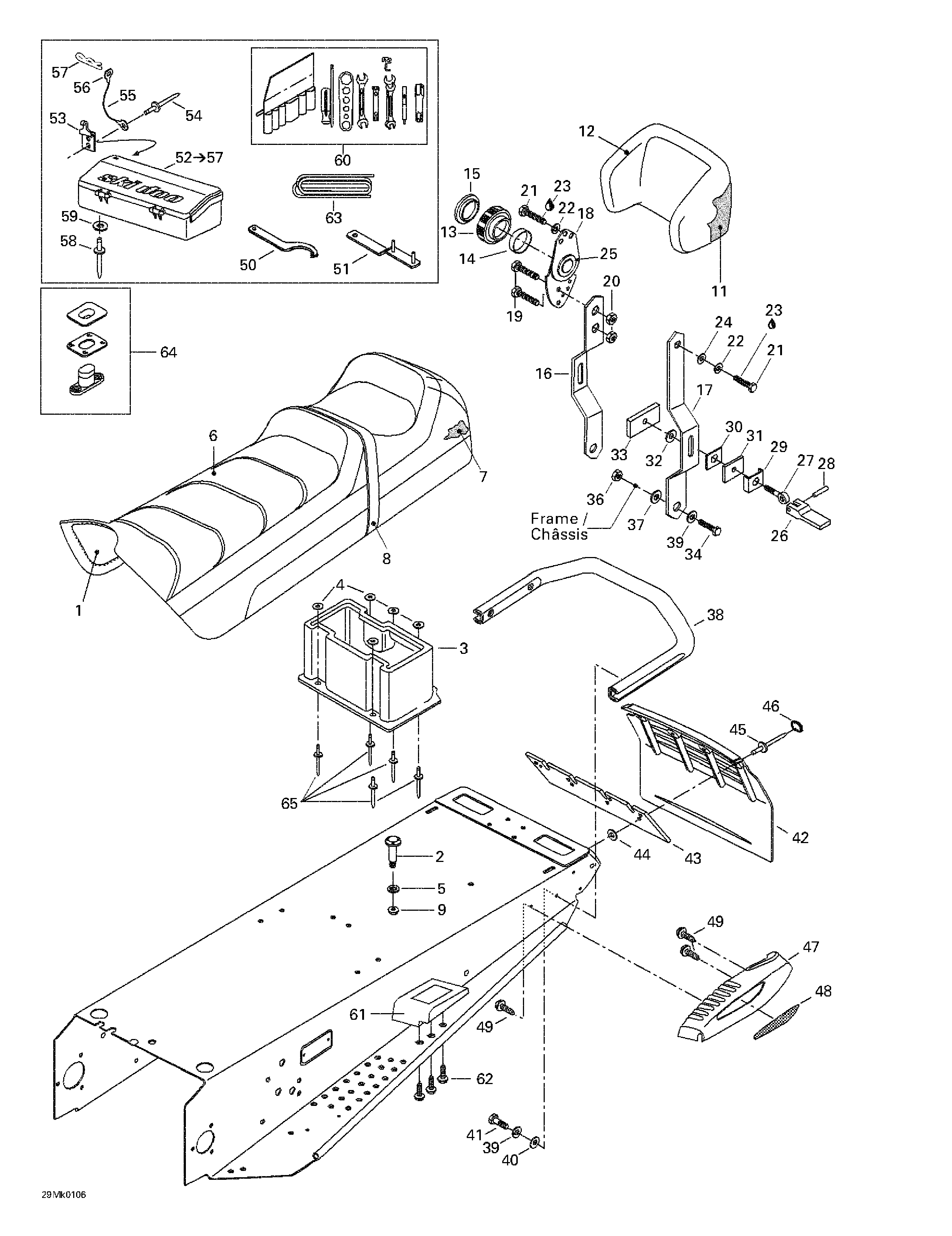

09- Seat, Backrest And Accessories для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1510003589 Sub-SeatSub-Seat
-
2732601221 > Bolt> Bolt
-
3572106300 Rear TrunkRear Trunk
-
4517297900 Flat WasherFlat Washer
-
5732610072 Push NutPush Nut
-
6510003837 Seat CoverSeat Cover
-
7510003591 Seat FoamSeat Foam
-
8415095600 Seat BeltSeat Belt
-
9233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
10510003783 Backrest Ass'y. Includes 10 - 25.Backrest Ass'y. Includes 10 - 25.
-
11414821200 Backrest FoamBackrest Foam
-
12510003782 Backrest CoverBackrest Cover
-
13414820900 Tiller HandleTiller Handle
-
14415015500 StripStrip
-
15414821000 CapCap
-
16517296400 R.H. ArmR.H. Arm
-
17517296500 L.H. ArmL.H. Arm
-
18414813300 ReclinerRecliner
-
19207182544 Hex Screw M8 x 25Hex Screw M8 x 25
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21207182044 Hex Screw M8 x 20Hex Screw M8 x 20
-
22234181401 Lock Washer 8 mmLock Washer 8 mm
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24224081201 Flat WasherFlat Washer
-
25517250500 CapCap
-
26572038200 Lock LeverLock Lever
-
27517257600 Eye BoltEye Bolt
-
28414821400 PinPin
-
29517257300 GuideGuide
-
30317251300 SpacerSpacer
-
31570027400 Rubber ShimRubber Shim
-
32414819500 WasherWasher
-
33517250000 NutNut
-
34207182584 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
35234081670 Flat Washer 8 mmFlat Washer 8 mm
-
36232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
37414819600 WasherWasher
-
38517272510 Rear BumperRear Bumper
-
39234181401 Lock Washer 8 mmLock Washer 8 mm
-
40234081410 Washer 8 mmWasher 8 mm
-
41207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
42520000229 Snow GuardSnow Guard
-
43572108200 ReinforcementReinforcement
-
44517225900 WasherWasher
-
45390908000 Pop Rivet (Black)Pop Rivet (Black)
-
46415073300 CapCap
-
47572103900 R.H. MouldingR.H. Moulding
-
572104000 L.H. MouldingL.H. Moulding
-
48516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Reflector (Europe)R.H. Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Reflector (Europe)L.H. Reflector (Europe)
-
49365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
50529032900 Wrench-AdjusterWrench-Adjuster
-
51520000126 Wrench-AdjusterWrench-Adjuster
-
52520000107 Tool Box Ass'y. Includes 52 - 57.Tool Box Ass'y. Includes 52 - 57.
-
53517168500 LatchLatch
-
56561502800 Ring TerminalRing Terminal
-
57414112400 Hair PinHair Pin
-
58390409600 RivetRivet
-
59517124300 WasherWasher
-
60529035592 Tool KitTool Kit
-
61572088700 R.H. FootrestR.H. Footrest
-
572088800 L.H. FootrestL.H. Footrest
-
62243141640 Hex. Tapping Screw M4.8 x 16Hex. Tapping Screw M4.8 x 16
-
63412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
64414728000 Seat BuckleSeat Buckle
-
65390409600 Pop RivetPop Rivet
