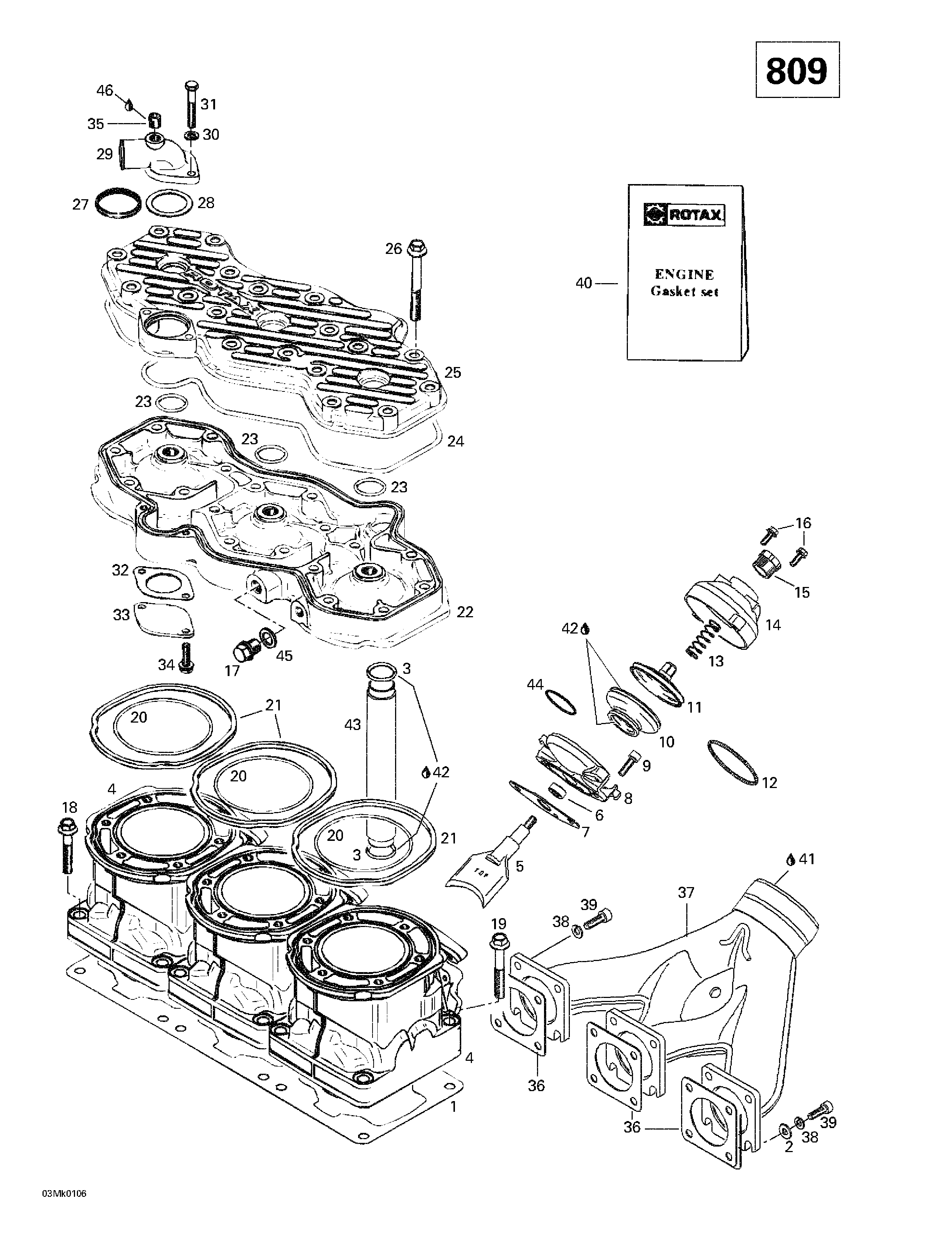

01- Cylinder, Exhaust Manifold (809) для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1420931622 Gasket 0.6 mmGasket 0.6 mm
-
420931621 Gasket 0.4 mmGasket 0.4 mm
-
420931620 Gasket 0.3 mmGasket 0.3 mm
-
2234061410 Flat Washer 6 mmFlat Washer 6 mm
-
3420430370 O-RingO-Ring
-
4420923480 Cylinder (Nicasil Coated)Cylinder (Nicasil Coated)
-
5420854303 Exhaust ValveExhaust Valve
-
6420950730 Oil SealOil Seal
-
7420250239 GasketGasket
-
8420854266 Valve HousingValve Housing
-
9420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
10420260723 BellowsBellows
-
11420854449 Exhaust ValveExhaust Valve
-
12290239048 SpringSpring
-
13420239945 SpringSpring
-
14420911552 Valve CoverValve Cover
-
15420241221 Adjuster ScrewAdjuster Screw
-
16420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
17420841921 Plug Screw M12 x 1,5Plug Screw M12 x 1,5
-
18420640431 Collar-Hex. Screw M8 x 45Collar-Hex. Screw M8 x 45
-
19420640441 Collar-Hex. Screw M8 x 53.5Collar-Hex. Screw M8 x 53.5
-
20420831792 O-RingO-Ring
-
21420931320 Seal RingSeal Ring
-
22420913638 Cylinder Head (Silver)Cylinder Head (Silver)
-
23420430782 O-RingO-Ring
-
24420950310 O-RingO-Ring
-
25420923493 Cylinder Head CoverCylinder Head Cover
-
26420841996 Hex. Screw M8 x 68.5Hex. Screw M8 x 68.5
-
27420931270 Sealing RingSealing Ring
-
28420927745 Retaining DiskRetaining Disk
-
29420922485 Exhaust SocketExhaust Socket
-
30420945751 Lock Washer 6 mmLock Washer 6 mm
-
31207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
32420850338 Gasket 1.0 mmGasket 1.0 mm
-
33420926260 CoverCover
-
34420240580 Taptite-Screw M6 x 16Taptite-Screw M6 x 16
-
35420240480 Plug ScrewPlug Screw
-
36420850552 GasketGasket
-
37420979970 Exhaust SocketExhaust Socket
-
38234161471 Lock Washer 6mmLock Washer 6mm
-
39205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
40420888790 Gasket SetGasket Set
-
41413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
42413707000 Molykote 111Molykote 111
-
43420922450 Water TubeWater Tube
-
44420838253 Spring ClampSpring Clamp
-
45420250015 Gasket RingGasket Ring
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
